View surveys

The 'View Survey' button on the switchboard enables you to view all sites and print them.  It will not allow you to change data or perform analyses. To edit data, go to the switchboard, select a site and press 'edit'.

Coordinates choice and displaying data on online maps

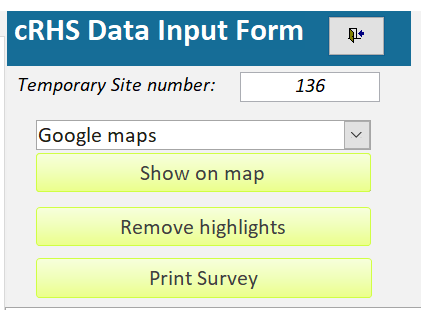

You can view data on maps using the button above.

You will be offered a choice of online providers for displaying your site. The list provided is a function of the coordinate system and geographical location.  You can edit the list and add online providers.  To do so, click on the edit icon that will appear at the bottom of the dropdown list and an edit form will open.  Then:

• Enter a site name
• Type a URL statement to open the site and include the words 'LATITUDE', 'LONGITUDE', 'EASTINGS', 'NORTHINGS' or 'GRIDREFERENCE' wherever the information is required for the URL to work (the software will put in there the site values)
• Indicate which coordinate system this site applies to
• Provide a short description
• Indicate whether the option should be visible (useful to hide unwanted sites)
• Set the site as the default option if you wish to
• Then test it!

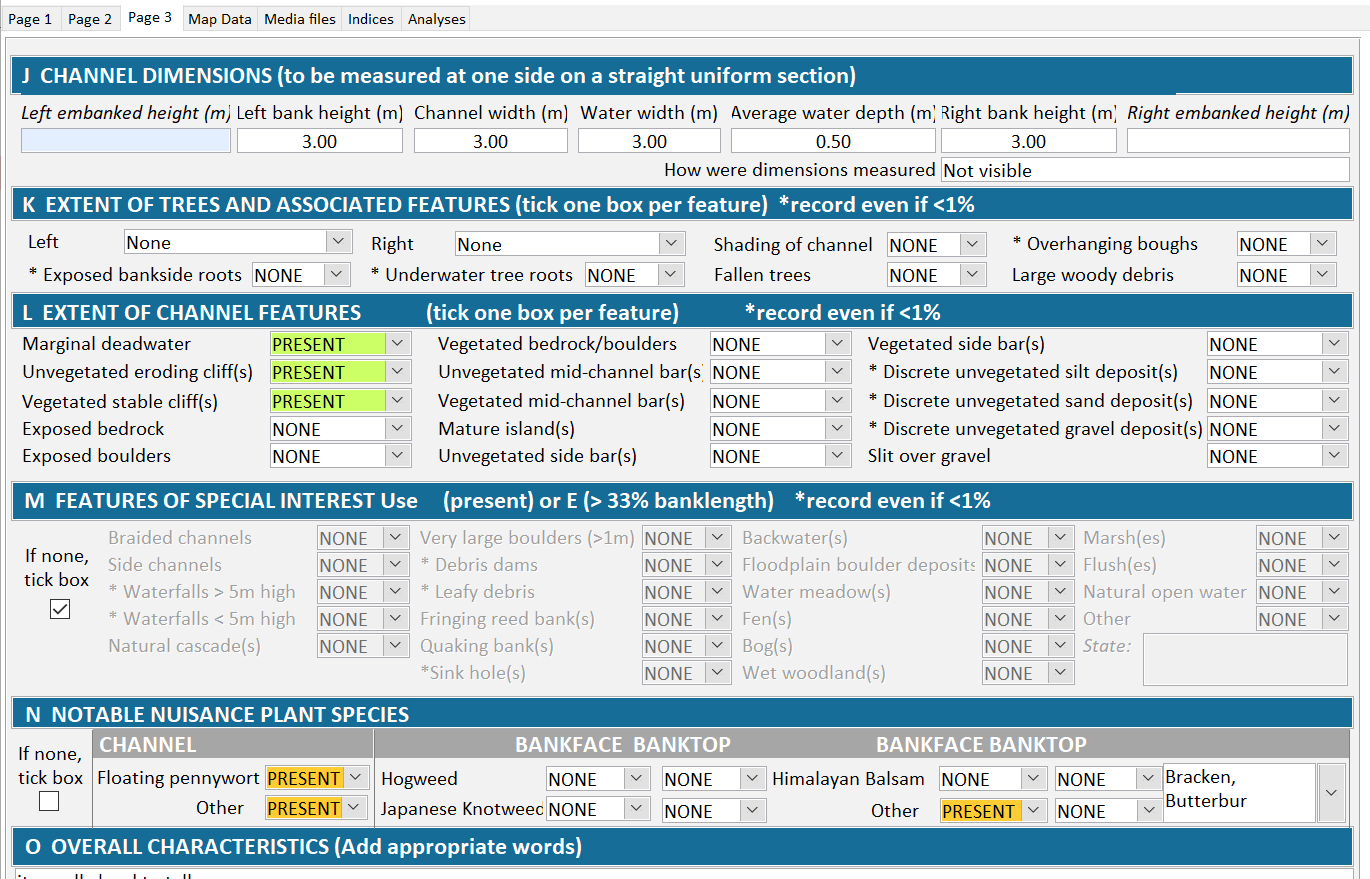

You can also highlight features and pressures by pressing the relevant button.  All engineering pressures present will be highlighted in red and natural features in green (see below).  This enables the quick identification of features and pressures of interest.

Pressures are highlighted in orange (present)  and  red (extensive)

Features are highlighted in light green (present)  and  dark green (extensive)
