You need to input data in most visible fields. This is to ensure that you have not missed any data.

Once you have finished inputting data, you need to run the Quality Assessment checks by clicking on the 'QA record' button

You will not be able to perform calculations until your form has passed the quality assessment checks

Coordinate system

You can choose one of three coordinate systems to reference your site location (see below):

• the OSGB36 grid reference system for sites in the UK (including Northern Ireland)
• the IG/IGM15 Irish grid reference system (covers the Republic of Ireland)
• The WGS84 latitude and longitude system (used in online maps such as Google maps)

For UK and Irish grid reference systems, you need to provide a 10 figure grid reference e.g. SD8012611641 or O1469834233.  Once you have entered the grid reference, it will be automatically converted into latitude and longitude under the WGS84 system (decimal degrees) and in eastings and northings for the mid site grid reference.  The conversions will be displayed on the Map Data tab (see below).

If you choose to enter your data using the WGS84, you need to input the data in decimal degrees (e.g. latitude 50.81 and Longitude -6.54).  You can also input the data in degrees/minutes/seconds by double clicking the relevant field (e.g. Latitude 1) and clicking OK. The software will automatically convert the data to decimal degrees.

You can also use the 'Coordinate System' dropdown box to convert WGS84 data to Irish or UK grid reference systems: see link

Number fields

If data have not been recorded by surveyors for number fields such as in section C or D, you need to enter the negative number -99 and the software will automatically display the data as missing.

Automatic input of data

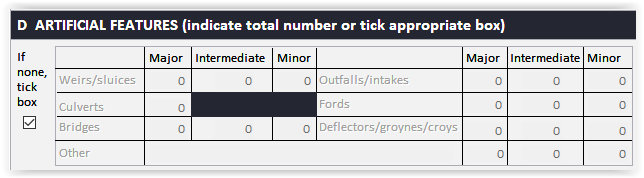

If no artificial features have been recorded in section D, tick the check box on the left and all fields will be set to '0' and become inactive (greyed-out) to avoid any data corruption.

Data Input Tips

• Do not use the mouse, use the Tab button to move from field to field (faster)
• Type the first letter of an acronym or field content (e.g. 'N' for 'None') and the first choice starting with the letter will be displayed
• If you tick the 'None' tick box in section D, it will automatically fill the rest of the boxes with zeros
• For numeric fields, missing values and not visible data are entered as '-99'
• You need to input data in all fields to pass the quality control
• Check the information window on the right-hand side for help (double-click the information window to open it separately)
